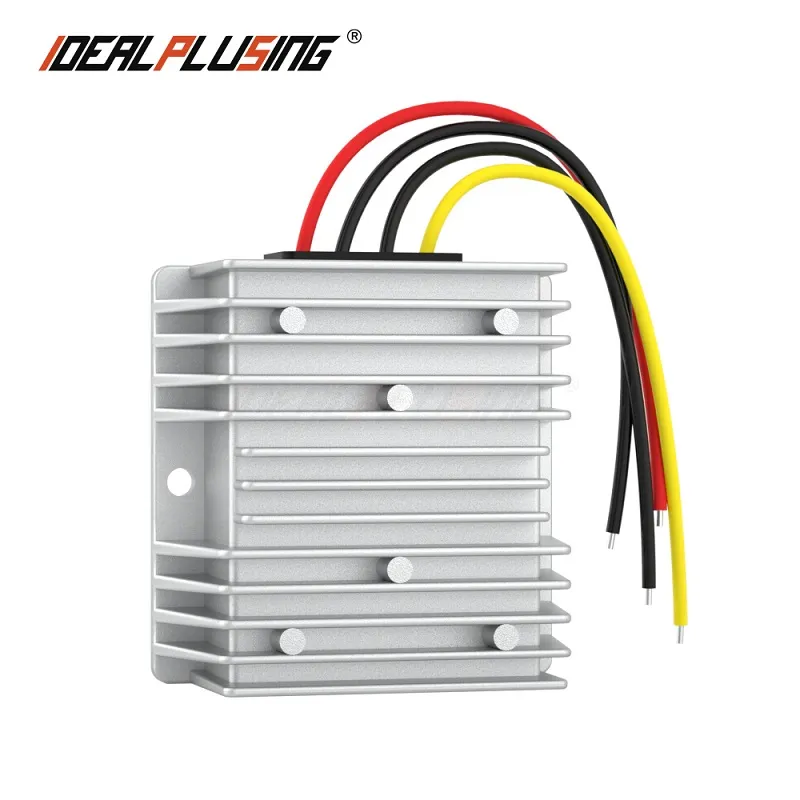

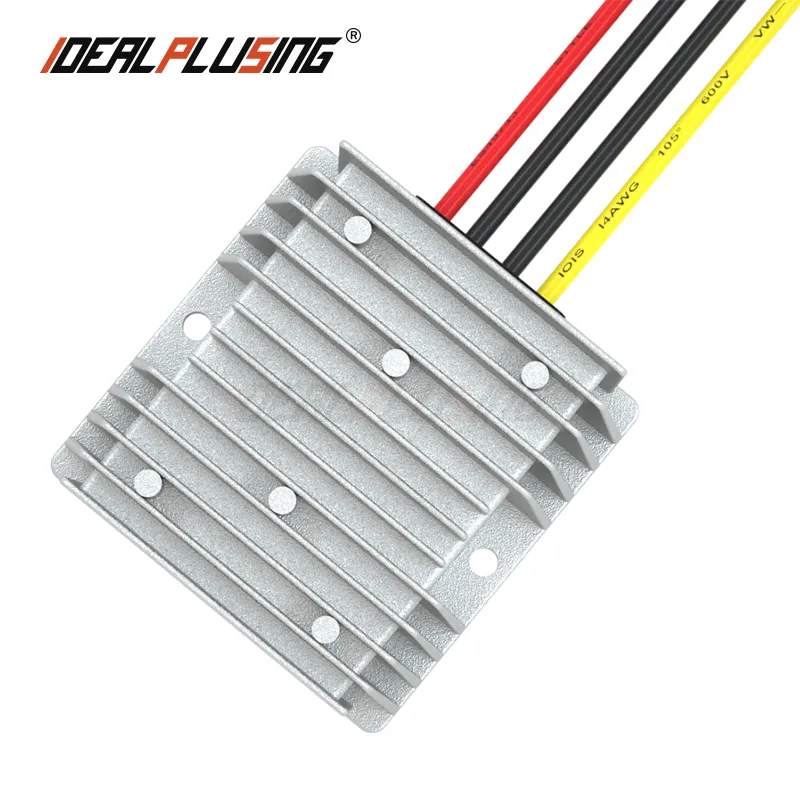

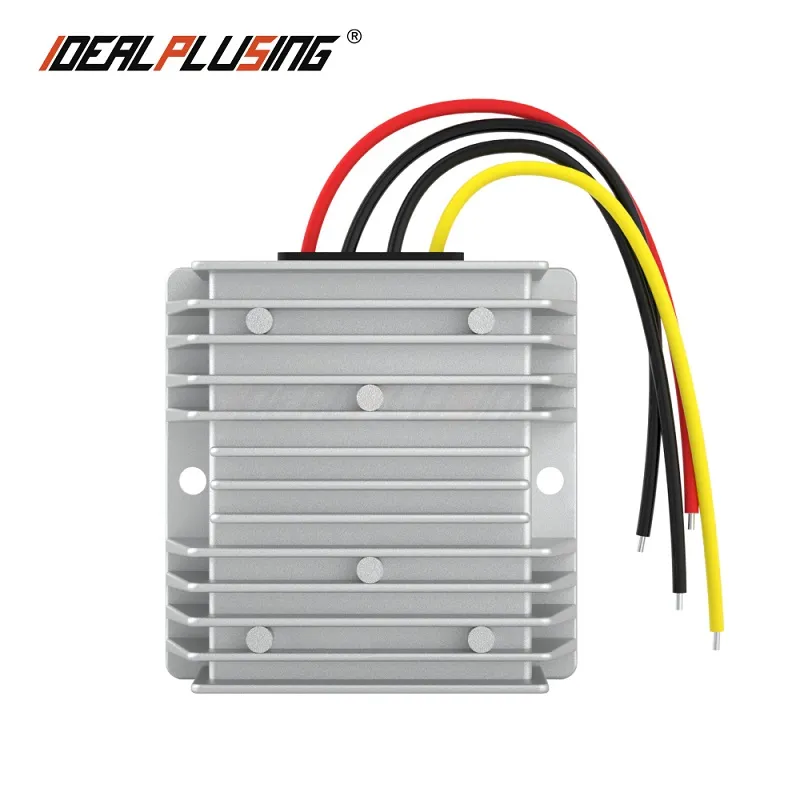

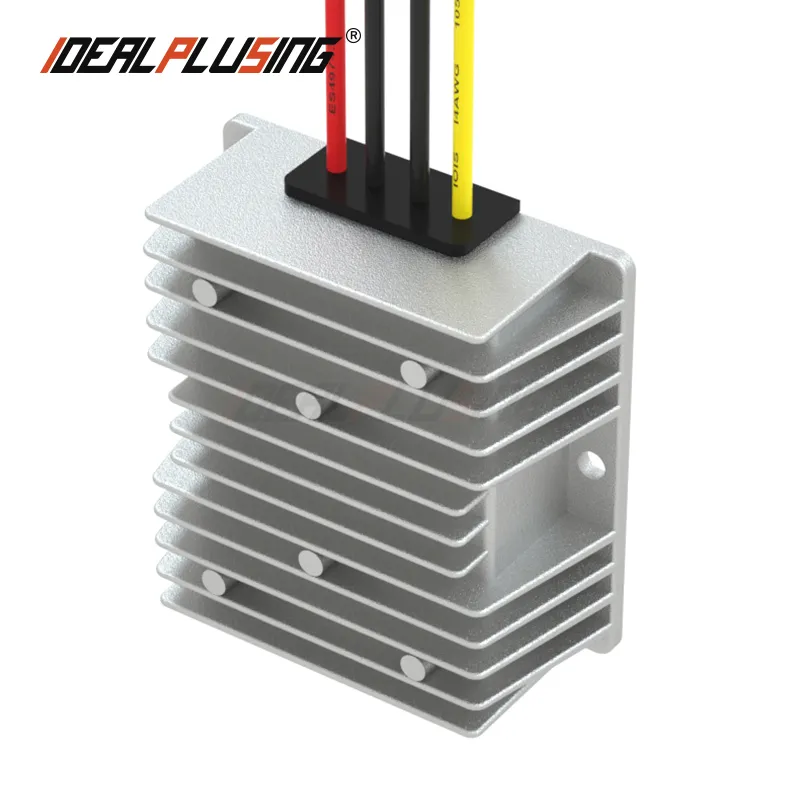

IPS-DTD110S12**-110vdc to 12vdc power converter

Hot selling customized products 110vdc to 12vdc power converter With multiple protection functions Model : IPS-DTD110S1210 110V TO 12V 10A DC DC CONVERTER Specification : ①　Input : 110VDC（30~110VDC） ②　Output : 12VDC 10A ③　Max power: 120W ④　Material of shell : Aluminum ⑤　Size : 74*74*32(MM) ⑥　Input & Output cable:13~15CM ⑦　NW: 300G ⑧　Non isolate and Waterproof IP65 Greetings, esteemed clientele. We specialize in customizing DC-DC converters to meet your specific requirements. With customized input and output voltage and current, our offerings range from 1V to 1000V and 1A to 1000A. We provide both isolated and non-isolated converter design options. Please visit our website and submit any inquiries to explore our capabilities further. Our dedicated team endeavors to respond within one hour. Thank you for considering our services.

Datasheet： Download

Brand	IDEALPLUSING
Name	110V TO 12V 10A DC DC CONVERTER
Type	Non-Isolate
Model (IPS-***)	IPS-DTD110S125	IPS-DTD110S128	IPS-DTD110S1210	IPS-DTD110S1215
INPUT
Rate Volts	110VDC
Volts range	30~110VDC
OUTPUT
Efficiency	92%
Output volts	12VDC
Output current	5A	8A	10A	15A
Rated Power	60W	96W	120W	180W
OTHERS
Voltage regulation	< 1%
Load regulation	< 2%
Ripple	< 50mV
No-load current	< 20mA
Working Temp	-40°c ~ +80°c
Waterproof rating	IP65
Machine size	747432(MM)
NW	300G
Cooling way	Free air convection
Certifications	CE, RoHS
Customize	Support
Sample order	Support
OEM & ODM	Support
Package	White & colorful package optional
