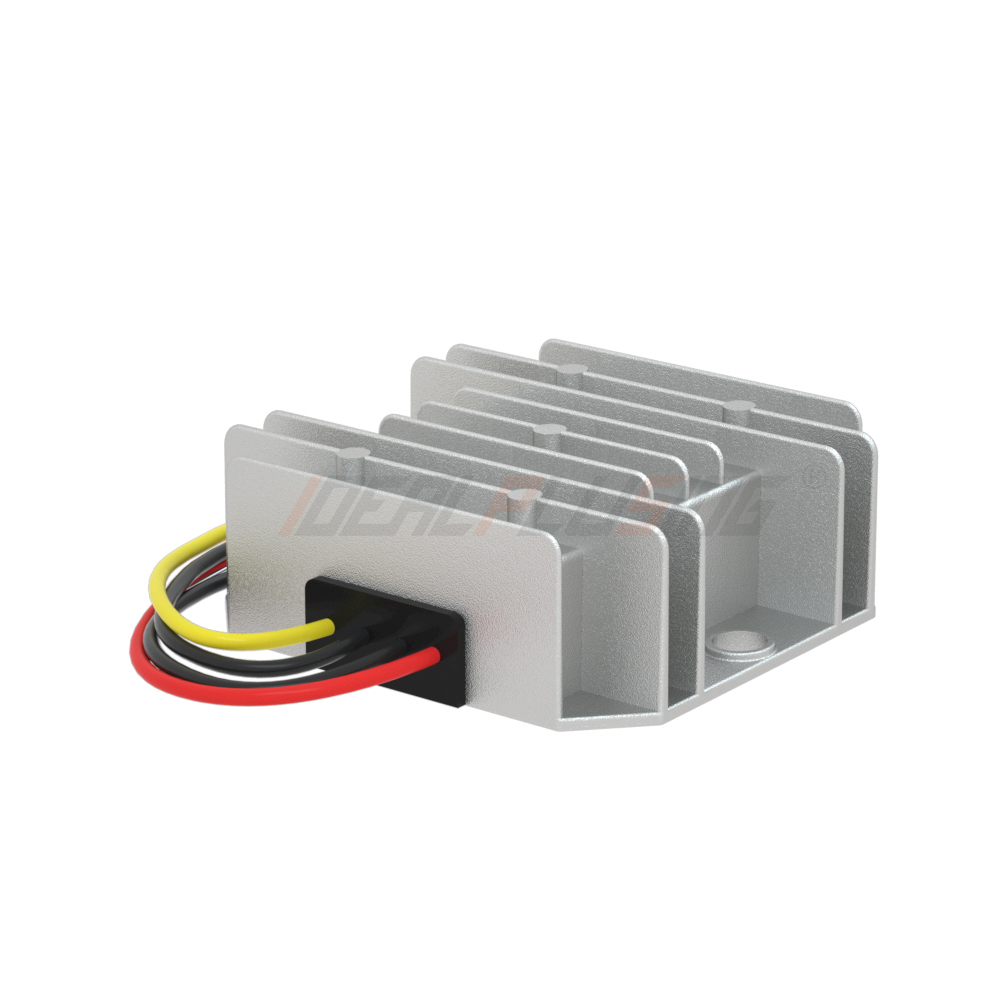

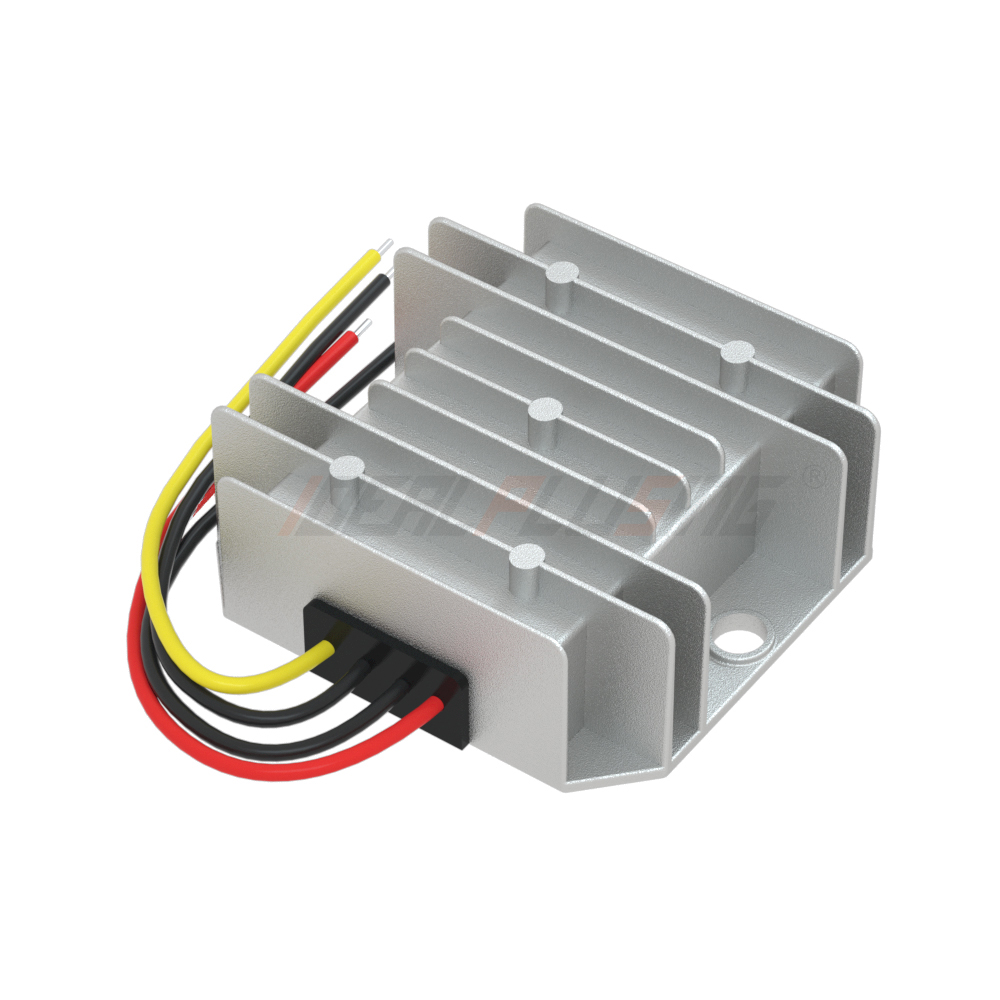

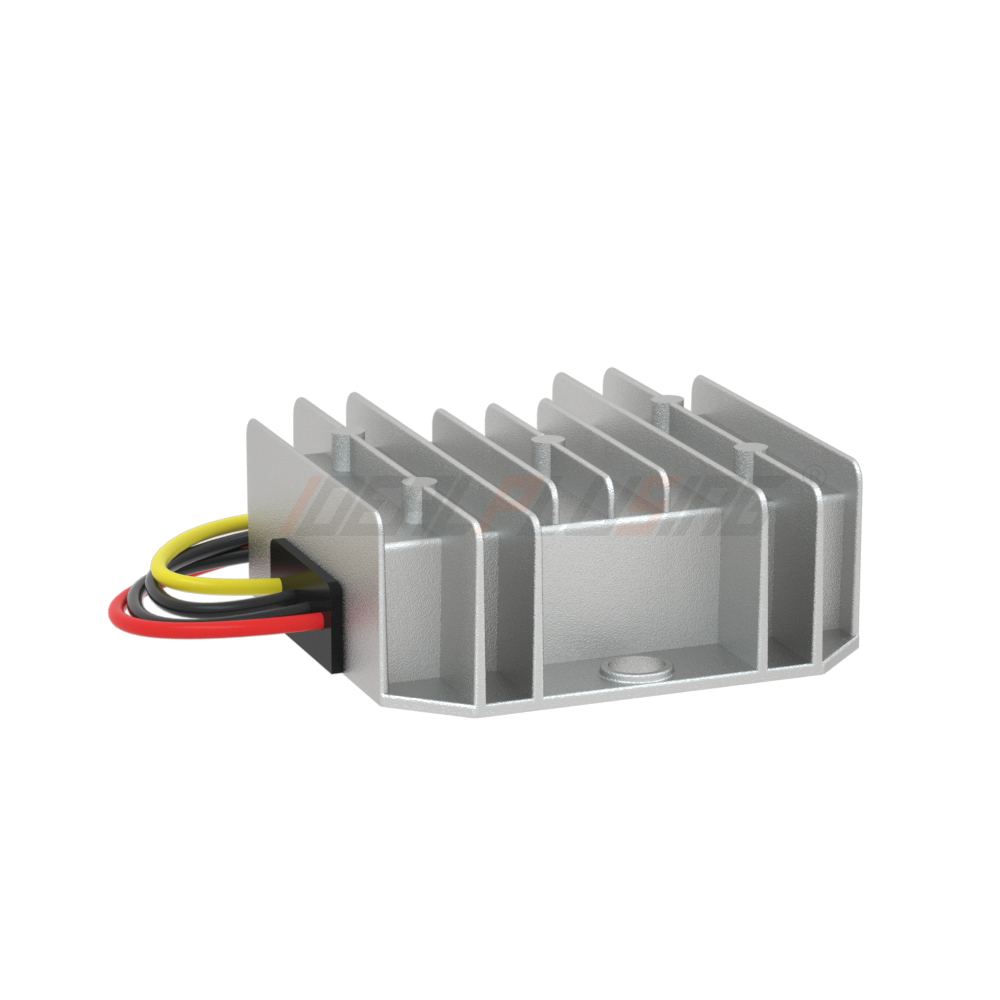

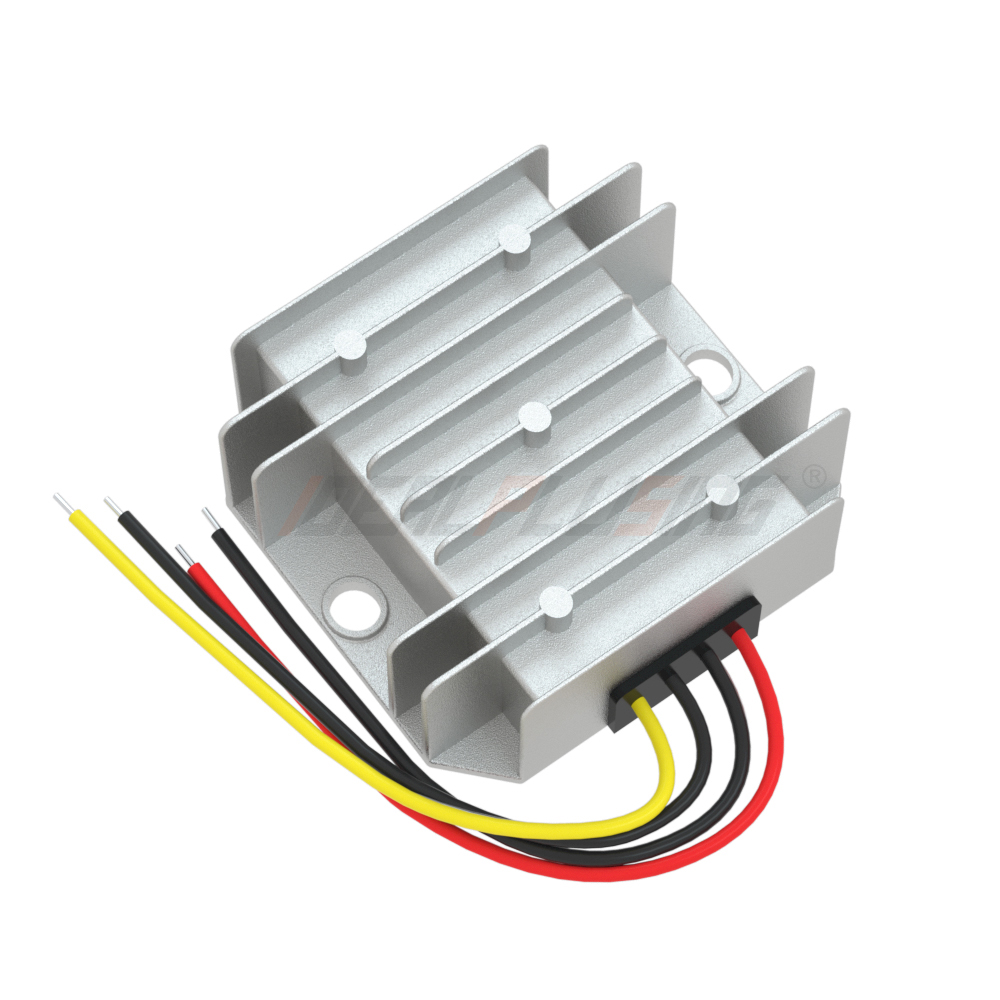

IPS-DTD48S125-48v Step Down To 12v 5a 60w Module Car Power Supply Voltage For Vehicle
Waterproof Ip68 Dc Converter Regulator DC20-60v 24v 36v 48v Step Down To 12v 5a 60w Module Car Power Supply Voltage For Vehicle
Model : IPS-DTD48S125 48V TO 12V 5A DC DC CONVERTER
Specification :
① Input: 48VDC（20~60VDC）
② Output: 12VDC 5A
③ Max power: 60W
④ Material of shell: Plastic
⑤ Size: 46*32*18MM
⑥ Input & Output cable: 13~15CM
⑦ NW: 45G,GW:65G
⑧ Design: Non isolate and waterproof IP65
⑨ Email :power@idealplusing.com
Brand | IDEALPLUSING |
Name | 48v Step Down To 12v 5a 60w Module Car Power Supply Voltage For Vehicle |
Type | Non-Isolate |
Model (IPS-***) | IPS-DTD48S125 |
INPUT | |
Rate Volts | 48VDC |
Volts range | 30~60VDC |
OUTPUT | |
Efficiency | 92% |
Output volts | 12VDC |
Output current | 5A |
Rated Power | 60W |
OTHERS | |
Voltage regulation | < 1% |
Load regulation | < 2% |
Ripple | < 50mV |
No-load current | < 20mA |
Working Temp | -40°c ~ +80°c |
Waterproof rating | IP65 |
Machine size | 46*32*18(MM) |
NW | 45G |
Cooling way | Free air convection |
Certifications | CE, RoHS |
Customize | Support |
Sample order | Support |
OEM & ODM | Support |
Package | White & colorful package optional |
