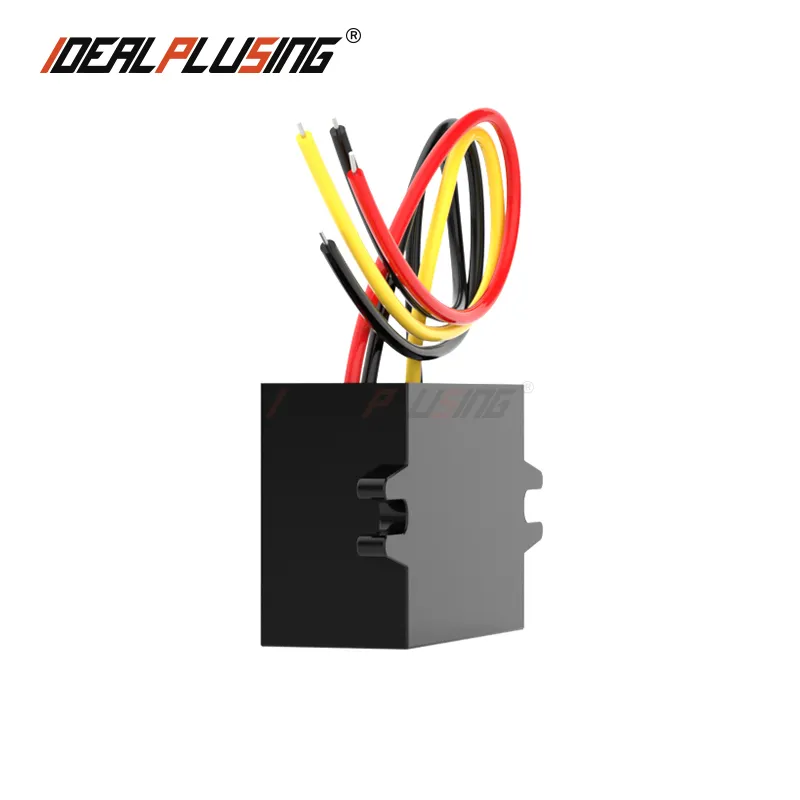

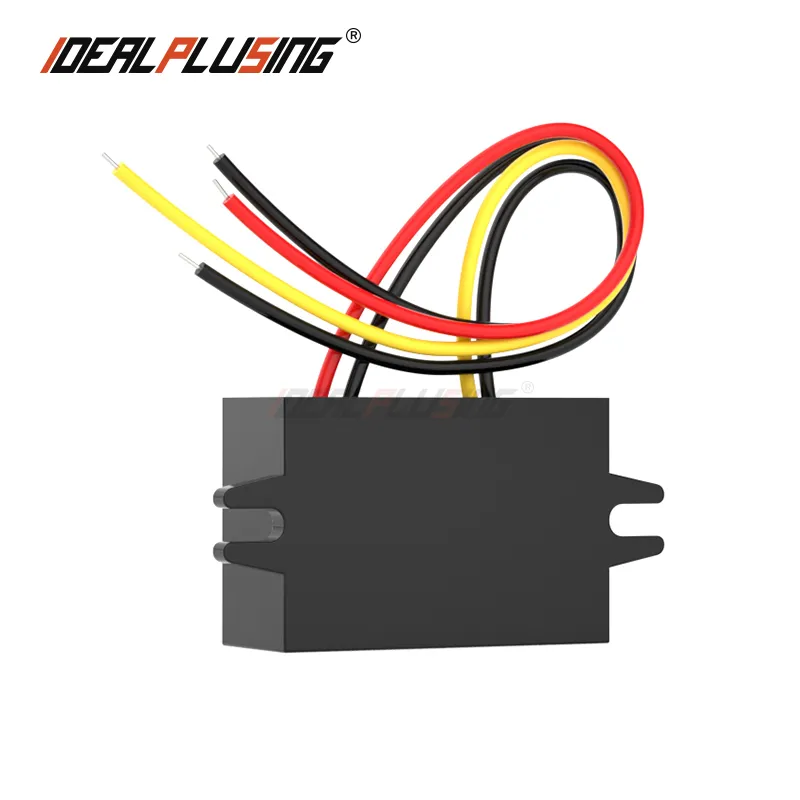

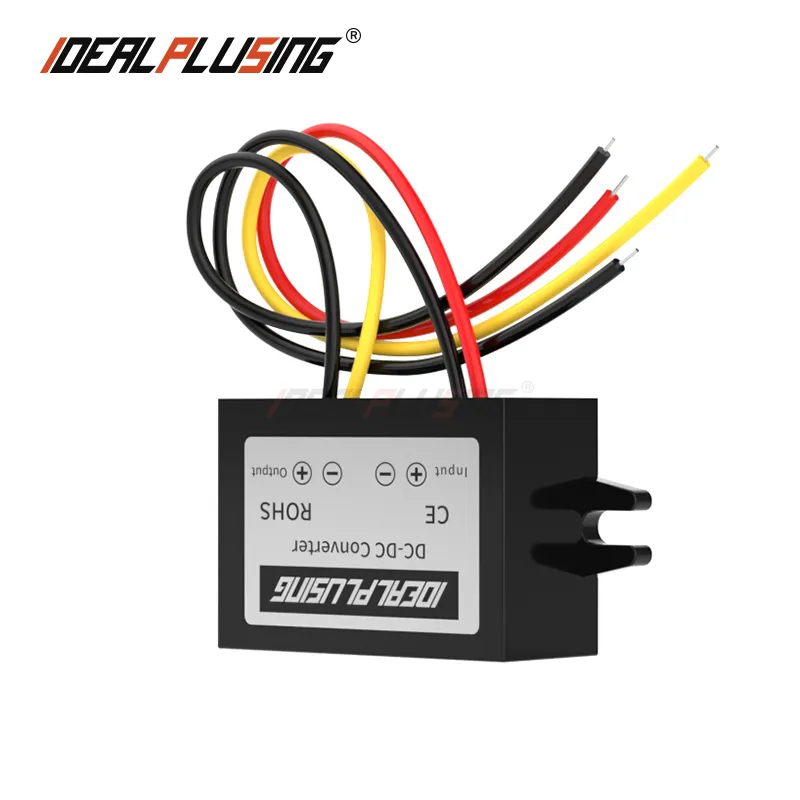

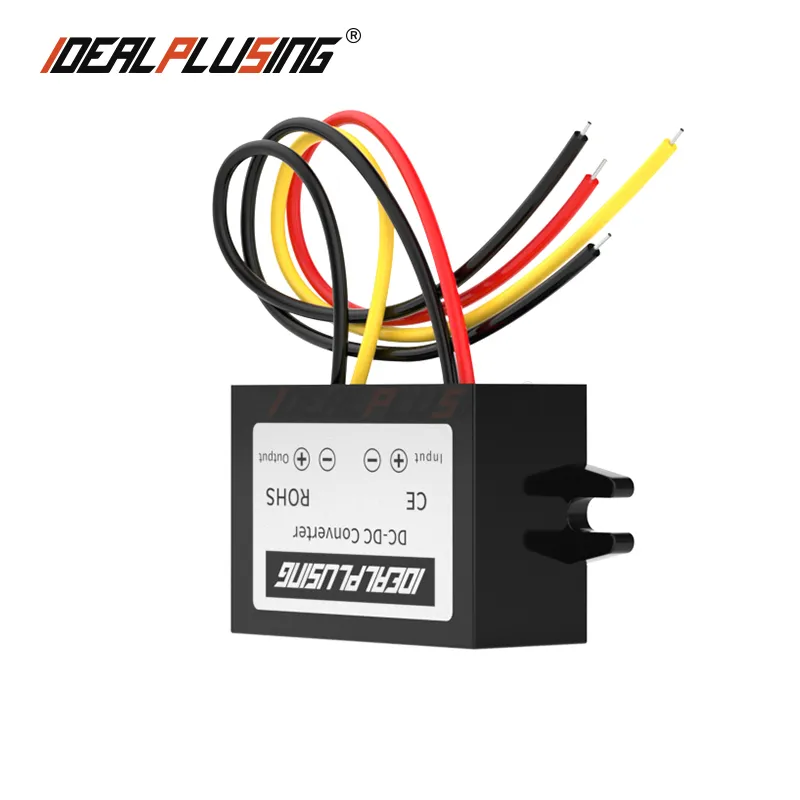

IPS-DTD24S125-24v to 12v step down dc dc converter 8A
CE Rohs dc24v to dc12v step down dc dc converter 5A 8A 60W 96W for car power
Model : IPS-DTD24S128 24V TO 12V 8A DC DC CONVERTER
Specification :
① Input: 24VDC（15~40VDC）
② Output: 12VDC 8A
③ Max power: 96W
④ Material of shell: Plastic
⑤ Size: 46*32*18(MM)
⑥ Input & Output cable: 13~15CM
⑦ NW: 45G,GW: 65G
⑧ Design: Non isolate and waterproof IP65
⑨ Email :power@idealplusing.com
Greetings, esteemed clientele. We specialize in customizing DC-DC converters to meet your specific requirements. With customized input and output voltage and current, our offerings range from 1V to 1000V and 1A to 1000A. We provide both isolated and non-isolated converter design options. Please visit our website and submit any inquiries to explore our capabilities further. Our dedicated team endeavors to respond within one hour. Thank you for considering our services.
Datasheet： Download
Brand | IDEALPLUSING | |
Name | 24v to 12v step down dc dc converter 8A | |
Type | Non-Isolate | |
Model (IPS-***) | IPS-DTD24S125 | IPS-DTD24S128 |
INPUT | ||
Rate Volts | 24VDC | |
Volts range | 15~40VDC | |
OUTPUT | ||
Efficiency | 92% | |
Output volts | 12VDC | |
Output current | 5A | 8A |
Rated Power | 60W | 96W |
OTHERS | ||
Voltage regulation | < 1% | |
Load regulation | < 2% | |
Ripple | < 50mV | |
No-load current | < 20mA | |
Working Temp | -40°c ~ +80°c | |
Waterproof rating | IP65 | |
Machine size | 46*32*18(MM) | |
NW | 45G | |
Cooling way | Free air convection | |
Certifications | CE, RoHS | |
Customize | Support | |
Sample order | Support | |
OEM & ODM | Support | |
Package | White & colorful package optional | |
